TEKAL 3

Family Aluminium - Electronic enclosures - Metal

Description

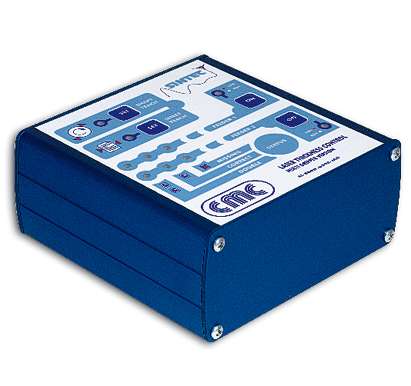

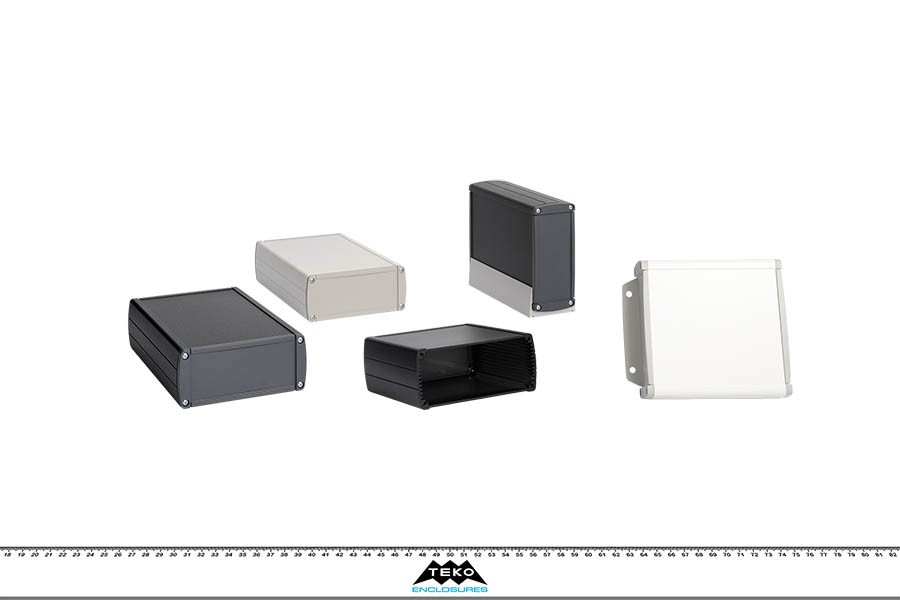

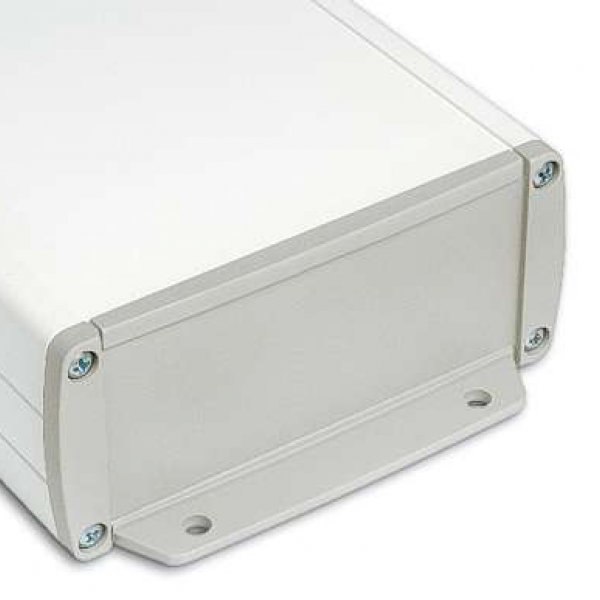

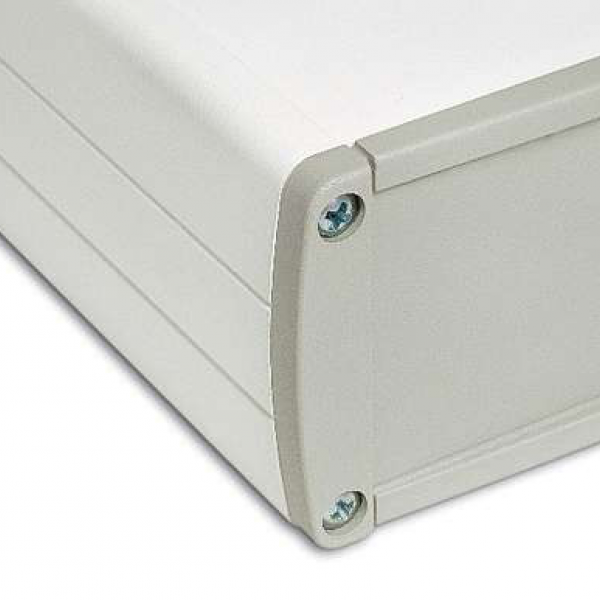

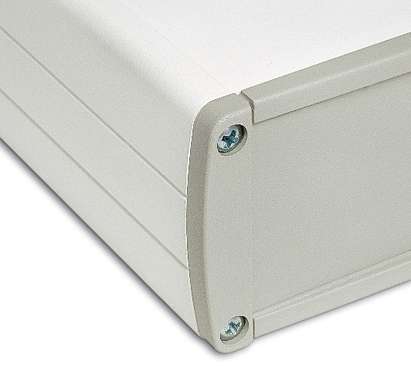

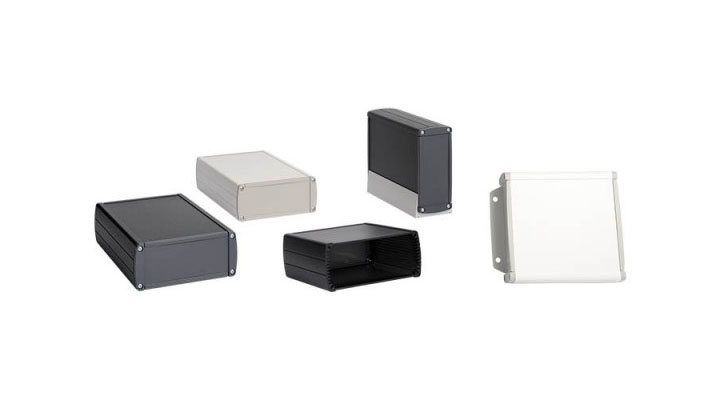

Extruded aluminium cases with high quality painted finishing. Two ABS front panels, internal slots for PCB’s and a recessed area for a keypad membrane. Six standard models are available with different sizes. The models with “-E” have mounting wall panels. Closing by eight screws

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

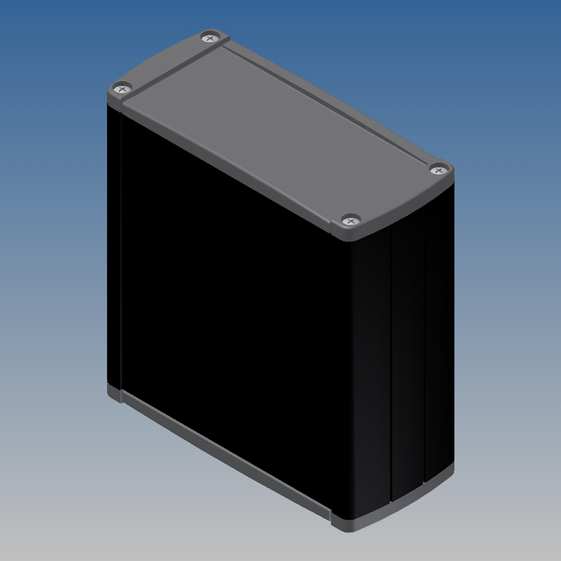

TEKAL-31.29 110 106 46 9004 7012

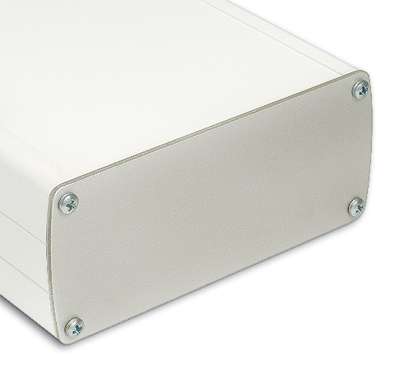

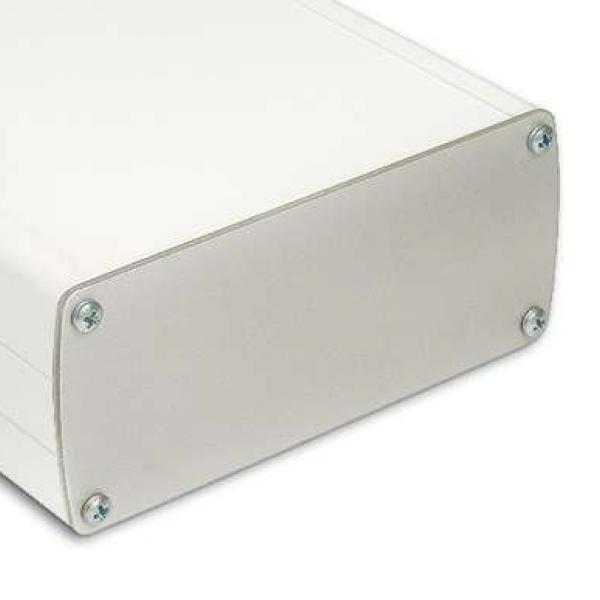

ALLOY 6060  -  1640 AS 100 100,5 8 - ALP-3
PPMT3

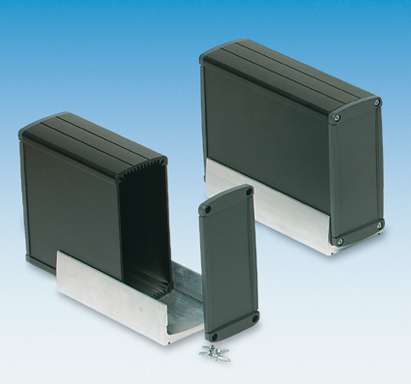

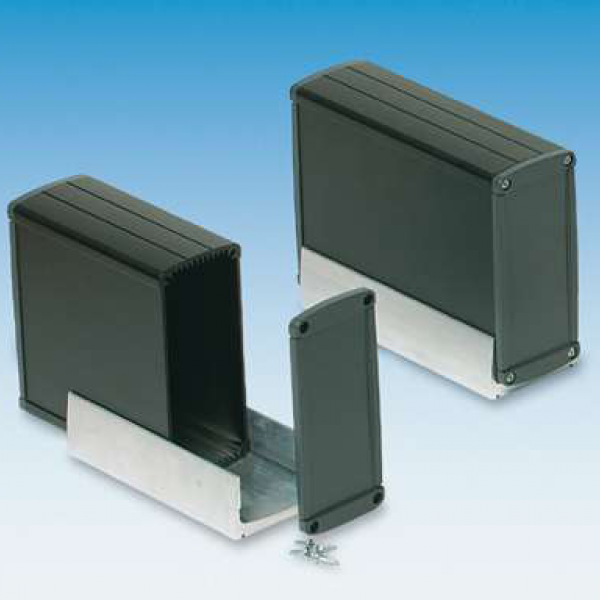

VS1
PDF
DWG
View
TEKAL-31.30 110 106 46 9002 9018
ALLOY 6060  -  1640 AS 100 100,5 8 - ALP-3
PPMT3
VS1
PDF
DWG
View

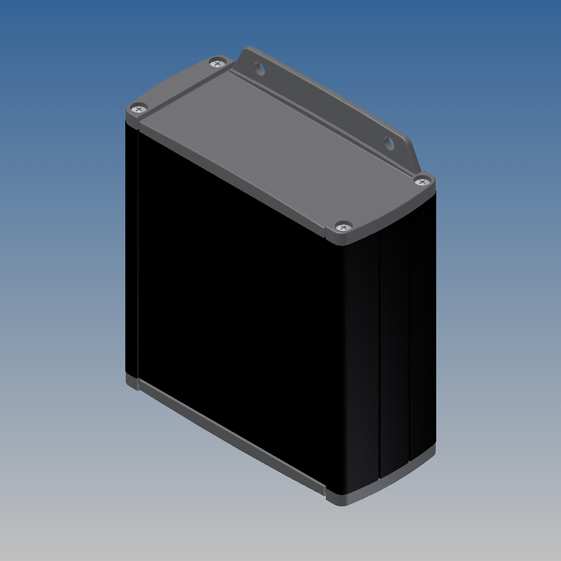

TEKAL-31/E.29 110 106 46 9004 7012
ALLOY 6060  -  1640 AS 100 100,5 8 - ALP-3
VS1
PDF
DWG
View

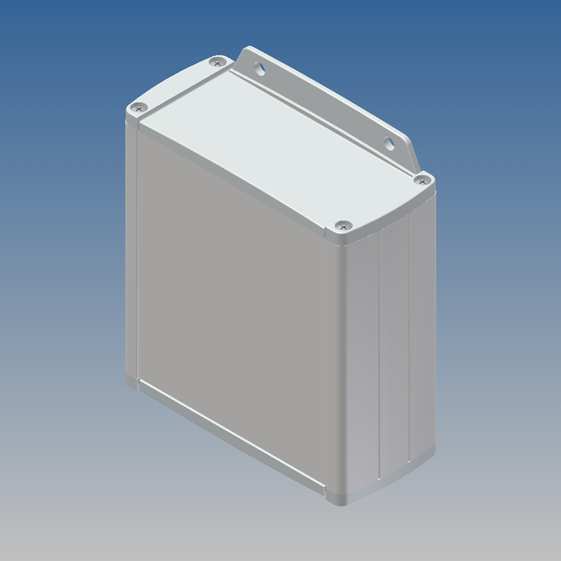

TEKAL-31/E.30 110 106 46 9002 9018
ALLOY 6060  -  1640 AS 100 100,5 8 - ALP-3
VS1
PDF
DWG
View

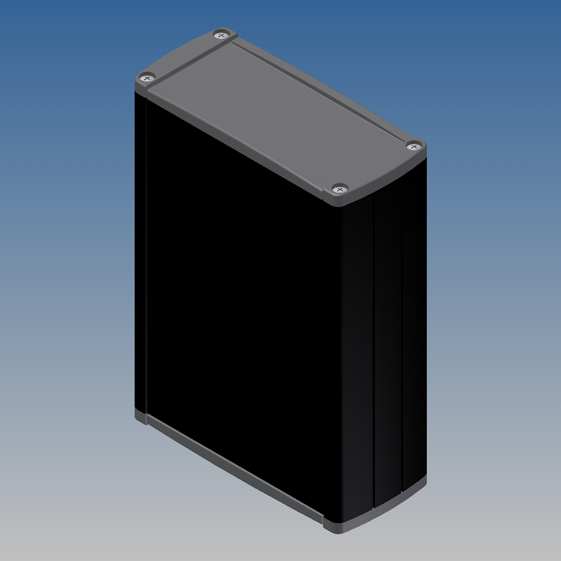

TEKAL-32.29 145 106 46 9004 7012
ALLOY 6060  -  1640 AS 135 100,5 8 - ALP-3
PPMT3
VS2
PDF
DWG
View

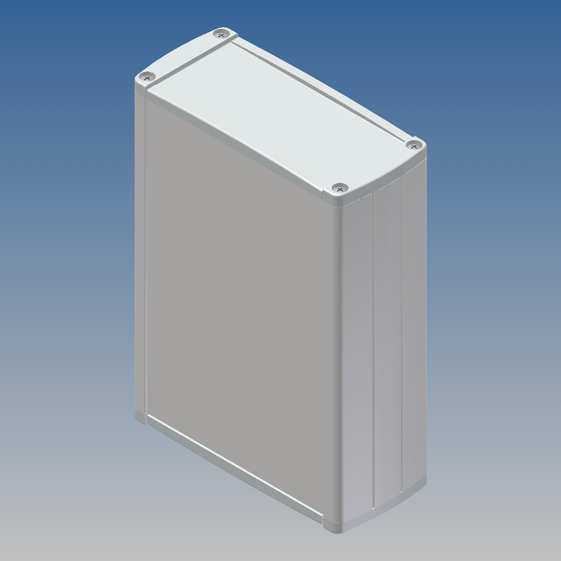

TEKAL-32.30 145 106 46 9002 9018
ALLOY 6060  -  1640 AS 135 100,5 8 - ALP-3
PPMT3
VS2
PDF
DWG
View

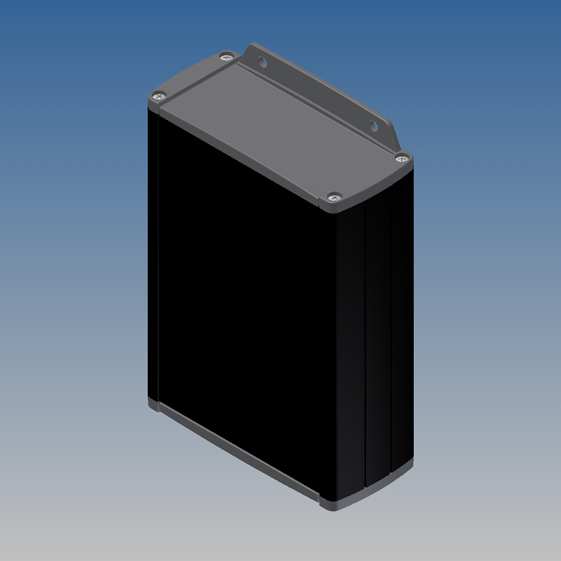

TEKAL-32/E.29 145 106 46 9004 7012
ALLOY 6060  -  1640 AS 135 100,5 8 - ALP-3
VS2
PDF
DWG
View

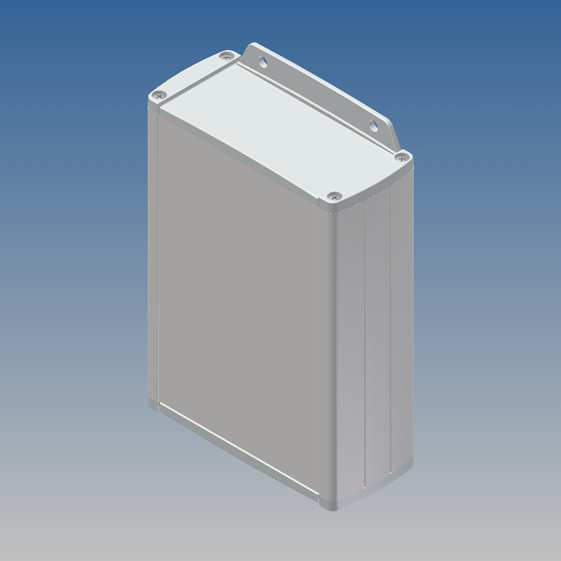

TEKAL-32/E.30 145 106 46 9002 9018
ALLOY 6060  -  1640 AS 135 100,5 8 - ALP-3
VS2
PDF
DWG
View

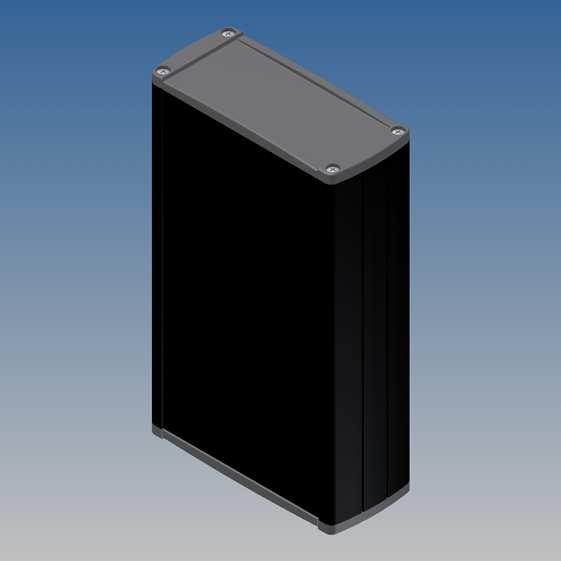

TEKAL-33.29 175 106 46 9004 7012
ALLOY 6060  -  1640 AS 165 100,5 8 - ALP-3
PPMT3
VS3
PDF
DWG
View

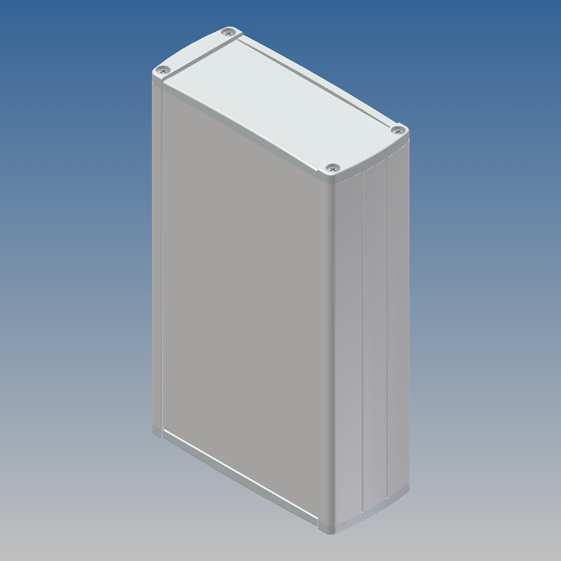

TEKAL-33.30 175 106 46 9002 9018
ALLOY 6060  -  1640 AS 165 100,5 8 - ALP-3
PPMT3
VS3
PDF
DWG
View

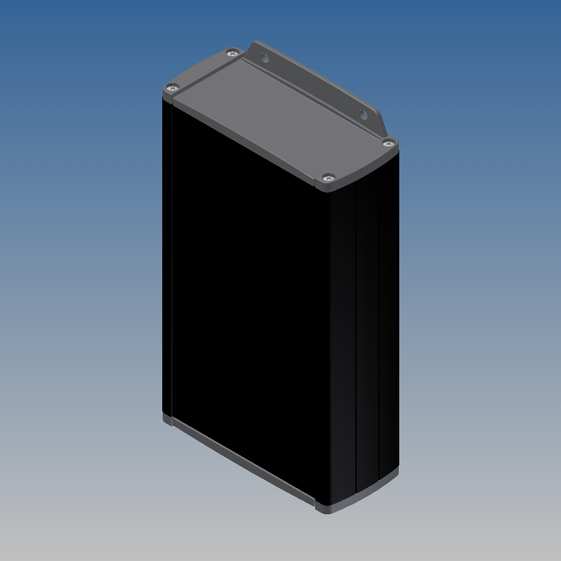

TEKAL-33/E.29 175 106 46 9004 7012
ALLOY 6060  -  1640 AS 165 100,5 8 - ALP-3
VS3
PDF
DWG
View

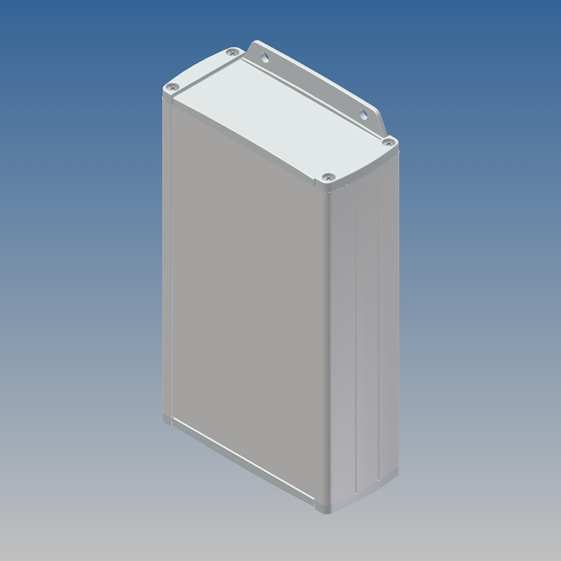

TEKAL-33/E.30 175 106 46 9002 9018
ALLOY 6060  -  1640 AS 165 100,5 8 - ALP-3
VS3
PDF
DWG
View
12 product families, 144 series. You can't find what you're looking for? Contact us
