PULT-10

Family Pult - Electronic enclosures - Plastic

Description

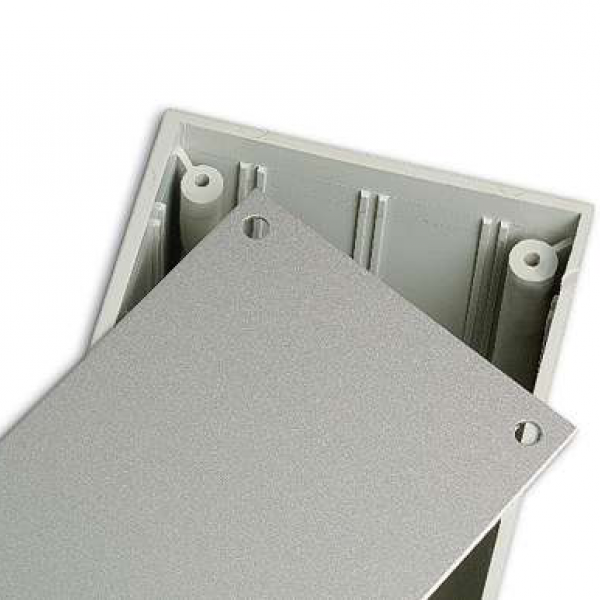

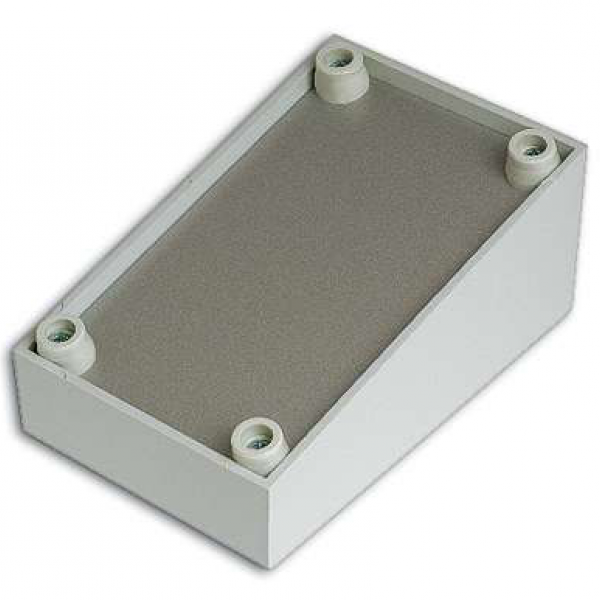

ABS enclosure with either a 10° or 12° incline for easy operation and readability, square corners and four non-skid feet (Mod. PT/4). The base walls have integral PCB guides. Two aluminium panels, closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
101.5 85 56 37 9018
AG-ATY 80 25,5 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
101.9 85 56 37 9004
P2H-AT 80 25,5 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 80
  • MAX PCB W (mm): 25,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
102.9 110 70 48,3 9004
P2H-AT 104 36,5 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 104
  • MAX PCB W (mm): 36,5
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
103.5 160 96 60,5 9018
AG-ATY 153,5 49 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 153,5
  • MAX PCB W (mm): 49
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
103.9 160 96 60,5 9004
P2H-AT 153,5 49 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 153,5
  • MAX PCB W (mm): 49
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
104.5 215 130 77 9018
AG-ATY 208 64 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 64
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
104.9 215 130 77 9004
P2H-AT 208 64 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 208
  • MAX PCB W (mm): 64
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
