Descrizione

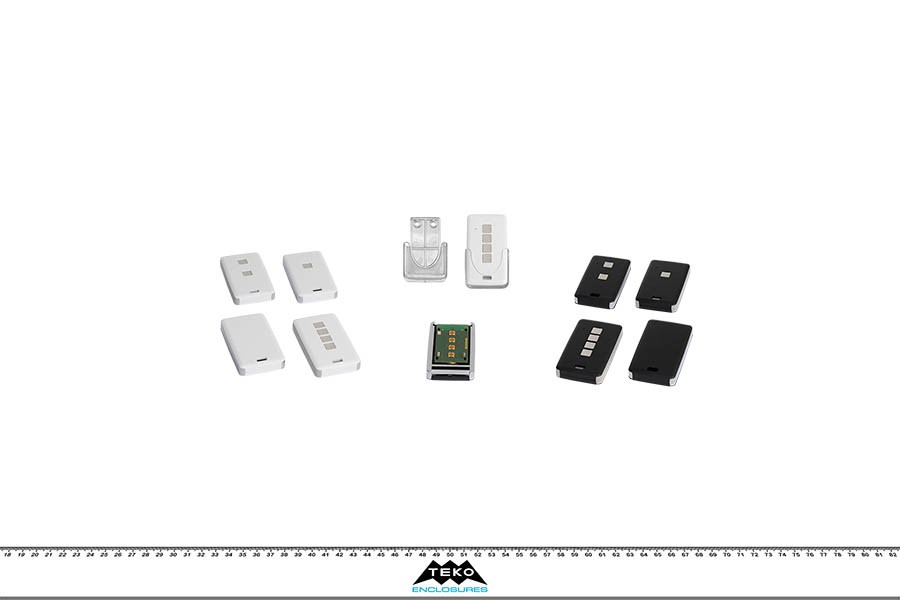

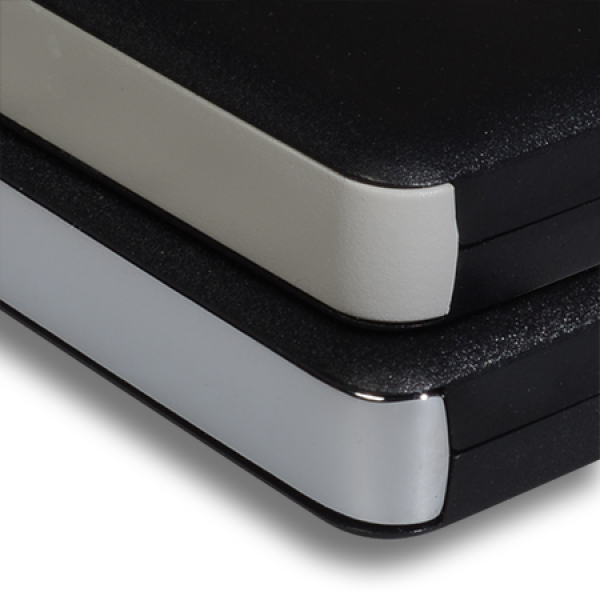

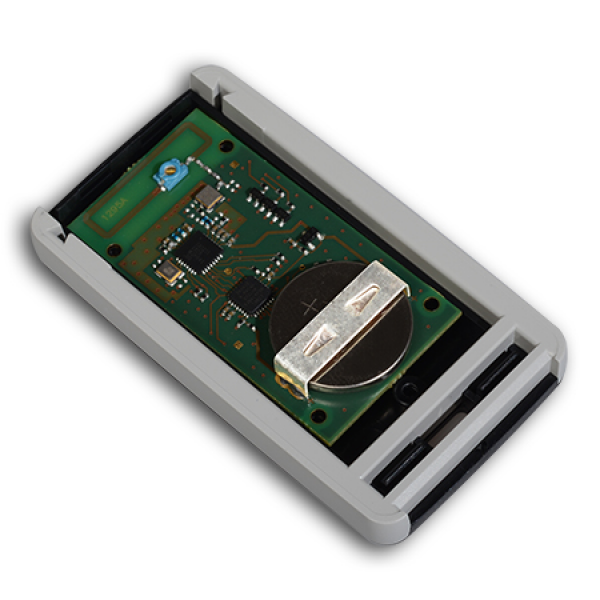

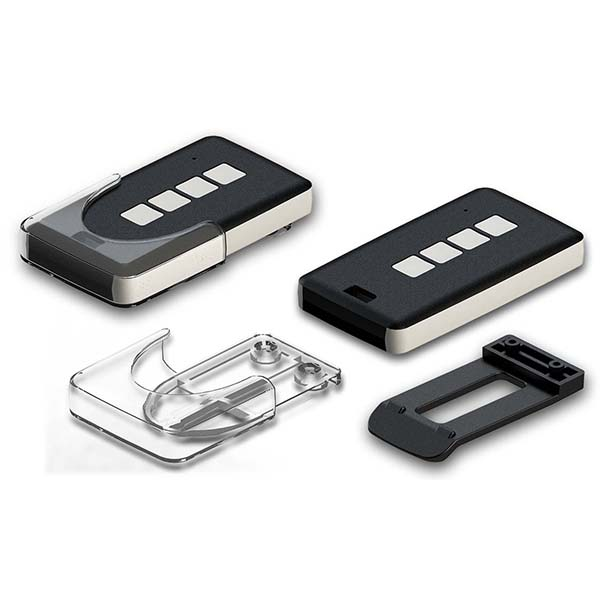

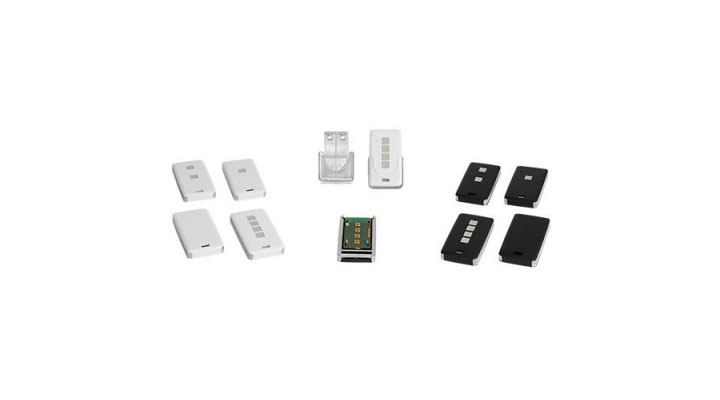

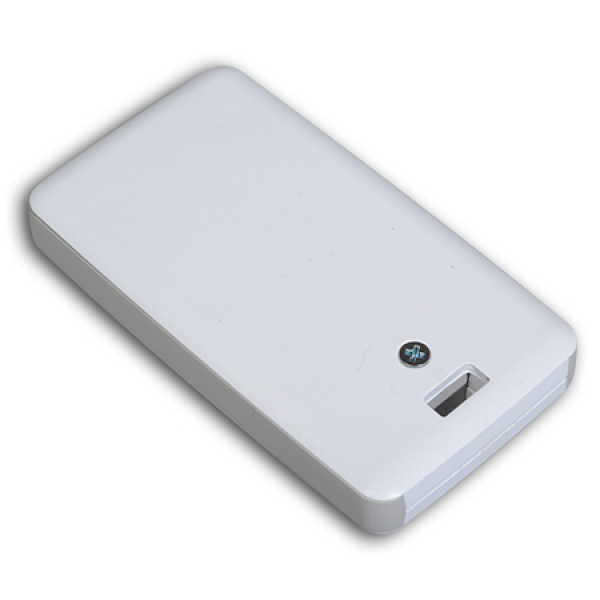

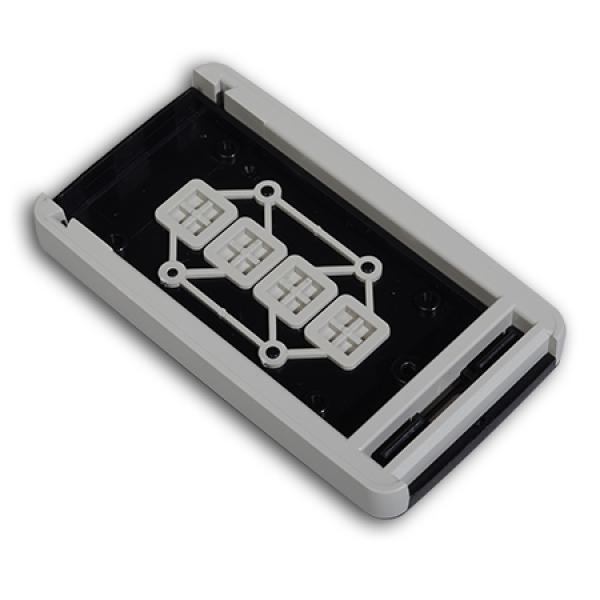

Fresh design for the remote control case featuring rounded edges available both as compact unit (13120) and with push button combination from one to four (13121, 13122, 13124). Internal pillars for PCB fixing. Two colour versions: white/light gray and black/light gray. Protection bumper in solid plastic or polished chromed metal. LED aperture on the cover. Closing by one screw. Suitable to accept button cells, accessorizable with battery holder AB2032.
Dettagli
Prodotti
| Modello | L (mm) | W (mm) | H (mm) | Colore (Ral) | Materiale | MAX PCB L (mm) | MAX PCB W (mm) | Viti | Batteria | Accessori | Disegni | Altro | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

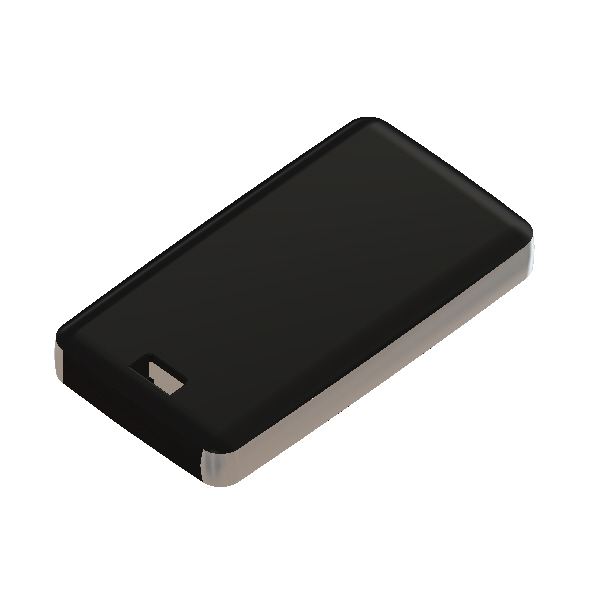

13120.23 | 71,5 | 39,3 | 11,5 |
9004 9018 |
P2H-AT | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

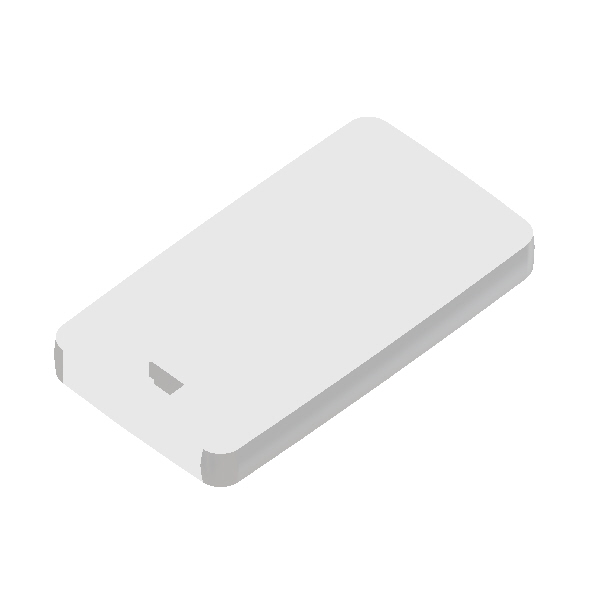

13120.30 | 71,5 | 39,3 | 11,5 |
9002 9018 |
P2H-AT | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

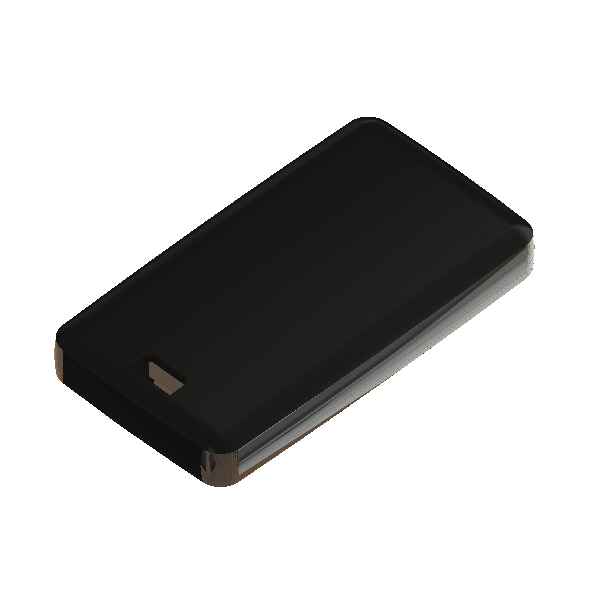

13120.44 | 71,5 | 39,3 | 11,5 |
9004 |
P2H-AT - ZA4C1 | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

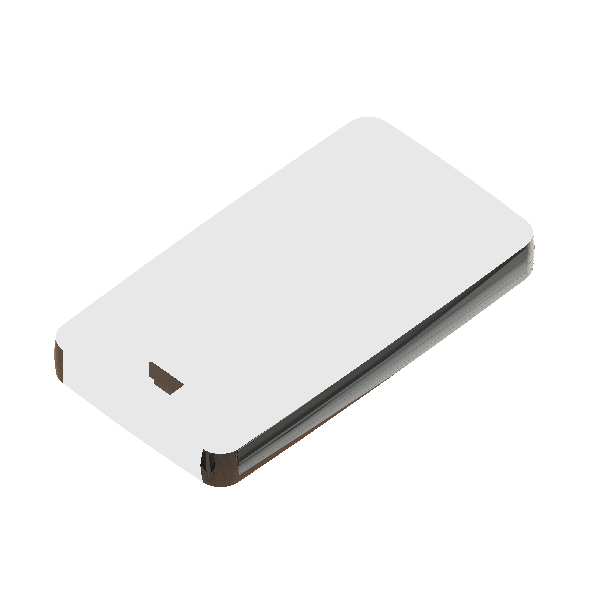

13120.47 | 71,5 | 39,3 | 11,5 |
9002 |
P2H-AT - ZA4C1 | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

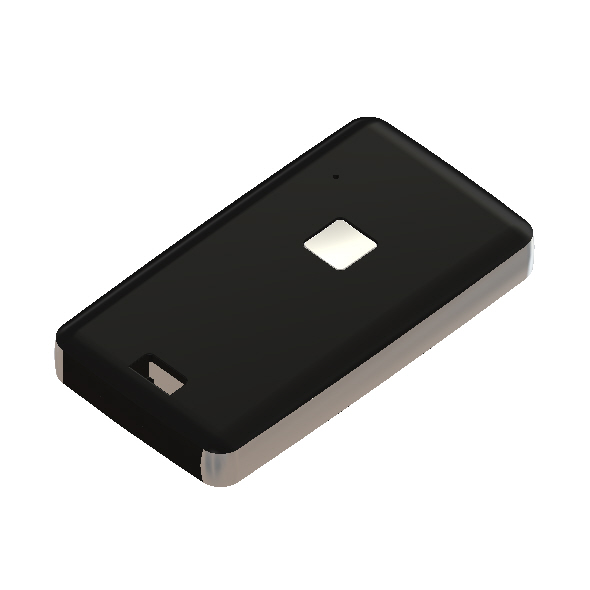

13121.23 | 71,5 | 39,3 | 11,5 |
9004 9018 |
P2H-AT | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

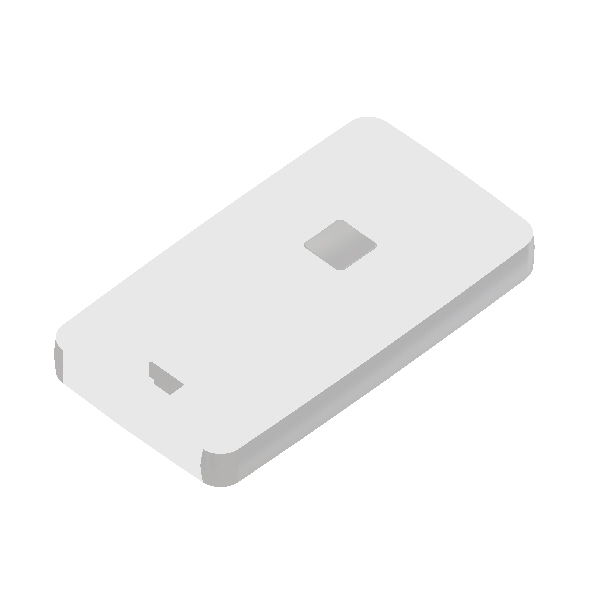

13121.30 | 71,5 | 39,3 | 11,5 |
9002 9018 |
P2H-AT | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

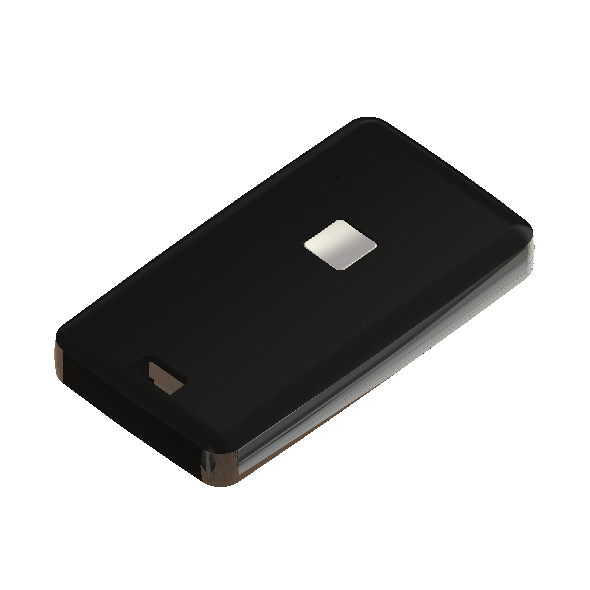

13121.44 | 71,5 | 39,3 | 11,5 |
9004 |
P2H-AT - ZA4C1 | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

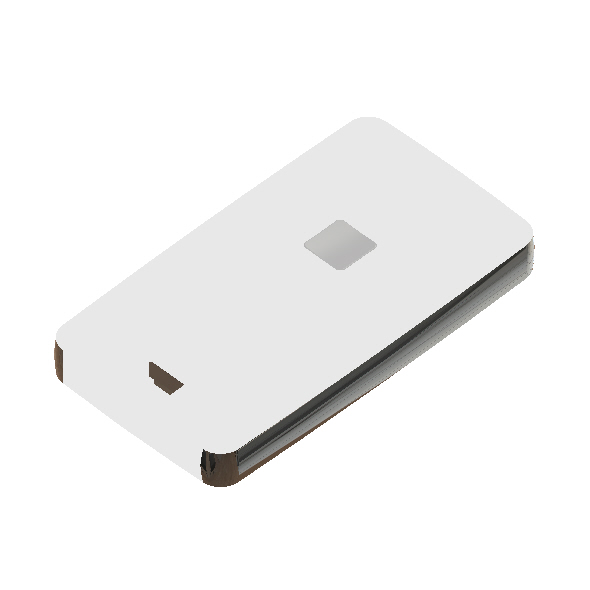

13121.47 | 71,5 | 39,3 | 11,5 |
9002 |
P2H-AT - ZA4C1 | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

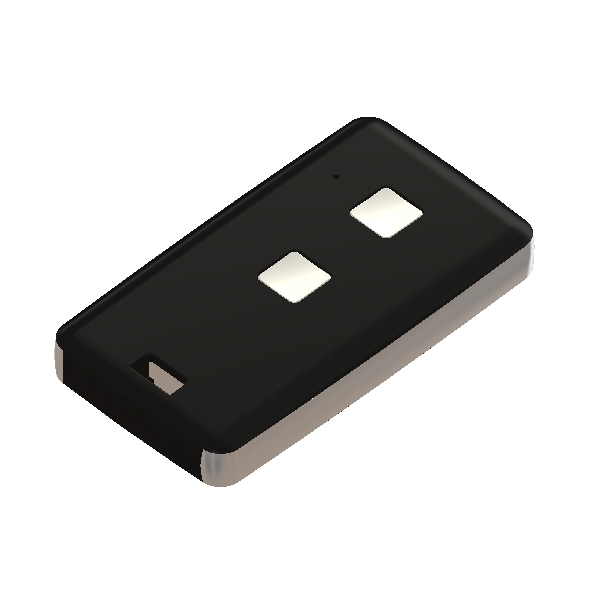

13122.23 | 71,5 | 39,3 | 11,5 |
9004 9018 |
P2H-AT | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

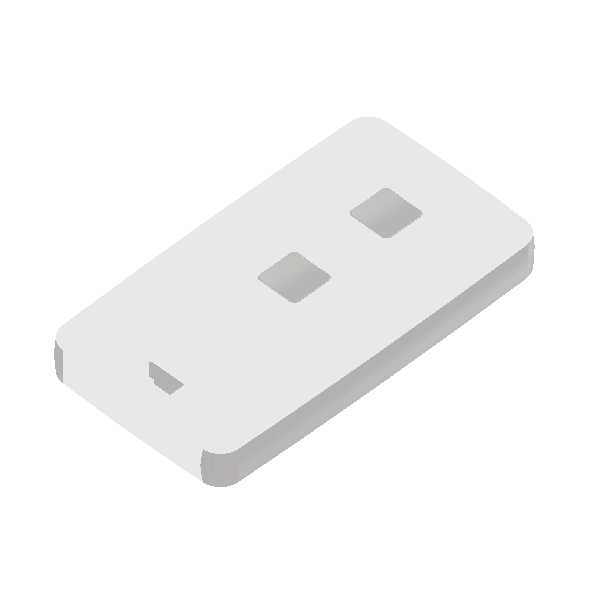

13122.30 | 71,5 | 39,3 | 11,5 |
9002 9018 |
P2H-AT | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

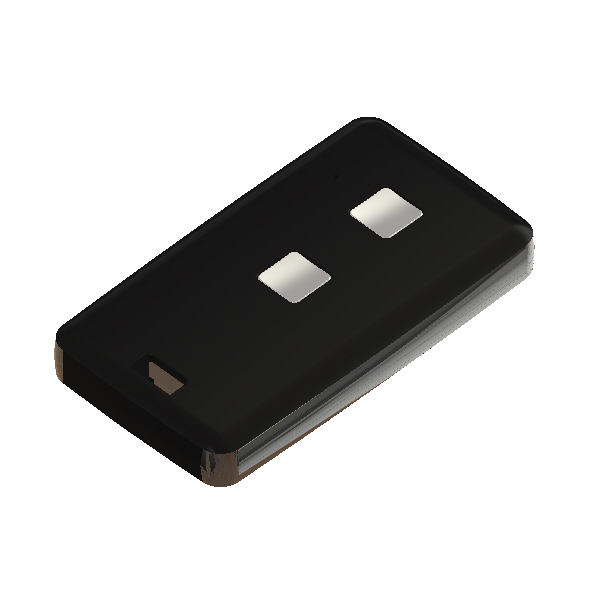

13122.44 | 71,5 | 39,3 | 11,5 |
9004 |
P2H-AT - ZA4C1 | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

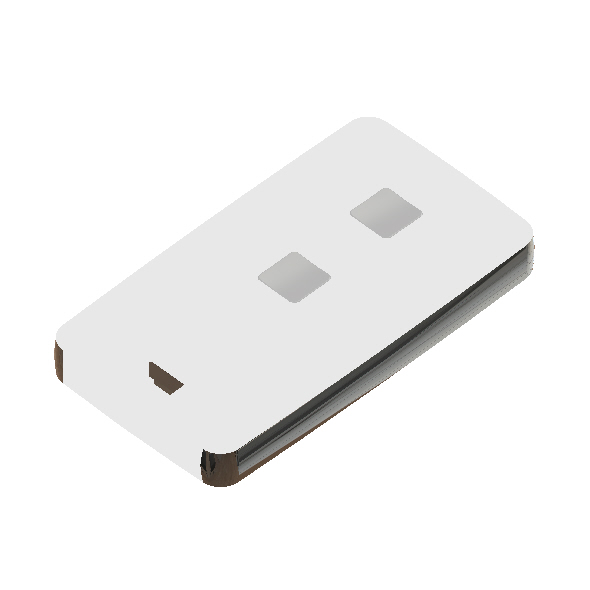

13122.47 | 71,5 | 39,3 | 11,5 |
9002 |
P2H-AT - ZA4C1 | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

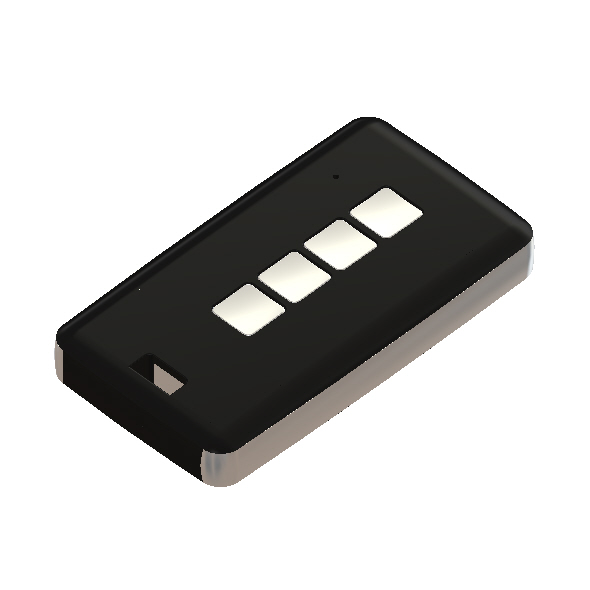

13124.23 | 71,5 | 39,3 | 11,5 |
9004 9018 |
P2H-AT | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

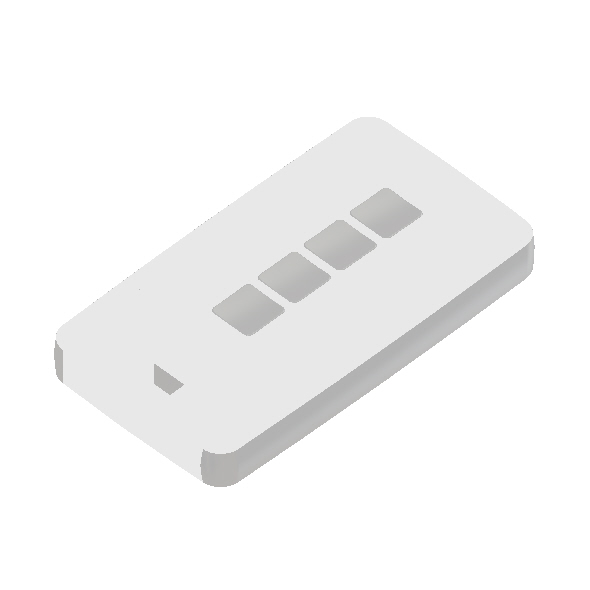

13124.30 | 71,5 | 39,3 | 11,5 |
9002 9018 |
P2H-AT | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|
13124.44 | 71,5 | 39,3 | 11,5 |
9004 |
P2H-AT - ZA4C1 | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
|
|

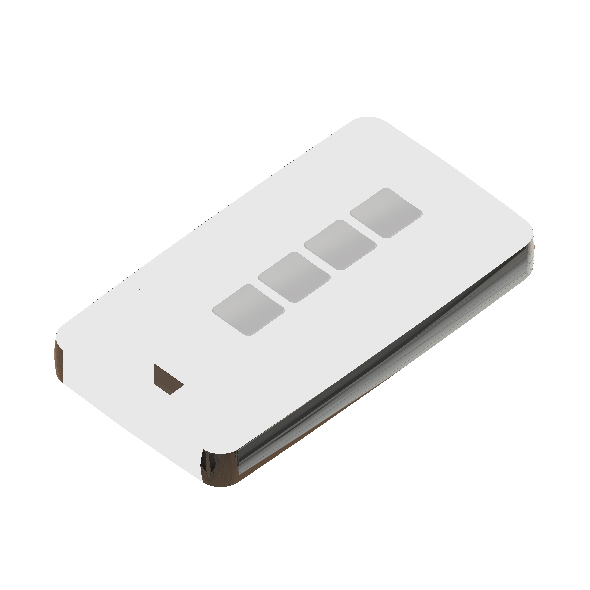

13124.47 | 71,5 | 39,3 | 11,5 |
9002 |
P2H-AT - ZA4C1 | 52 | 27 | 1 | CR2032 |
AB2032 MT8 |
PDF DWG |
