Smart

Description

ABS enclosures with rounded corners. Easy assembly. Matt surfaces finish. The models “-E” have mounting ears. Closing by two and four screws.

Details

Products

Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Other

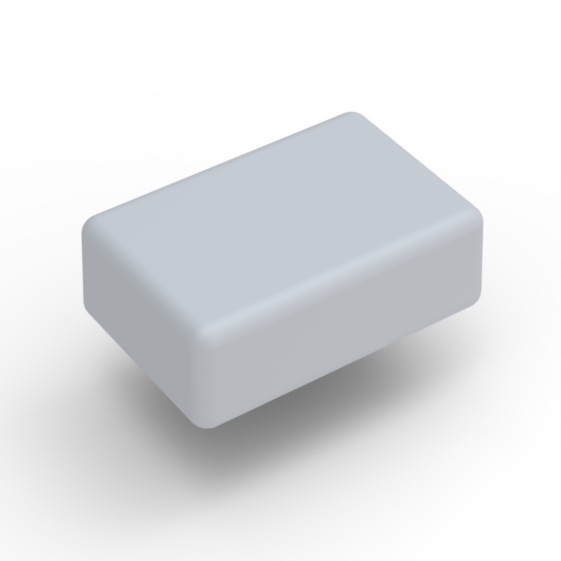

SR01.7	57	38	20	9002	TERLURAN GP-22	50	31	2	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 50 MAX PCB W (mm): 31 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

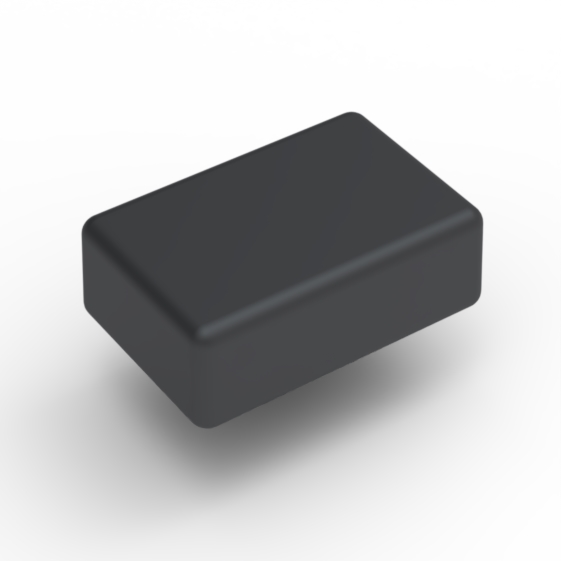

SR01.9	57	38	20	9004	TERLURAN GP-22	50	31	2	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 50 MAX PCB W (mm): 31 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

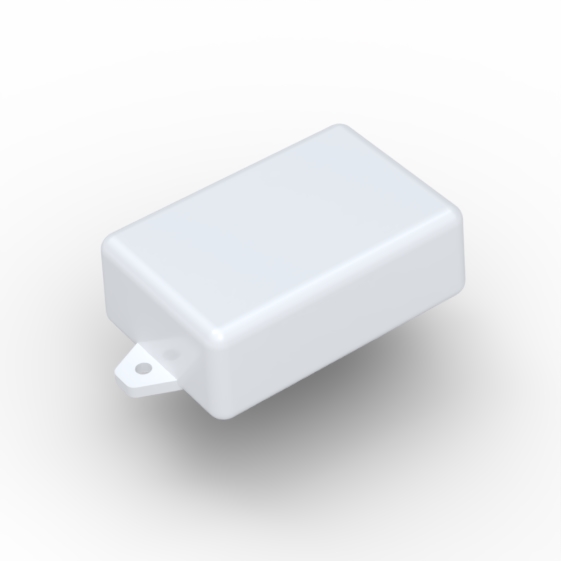

SR01-E.7	57	38	20	9002	TERLURAN GP-22	50	31	2	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 50 MAX PCB W (mm): 31 Screws: 2 Battery: - Accessories: Drawings: PDF DWG

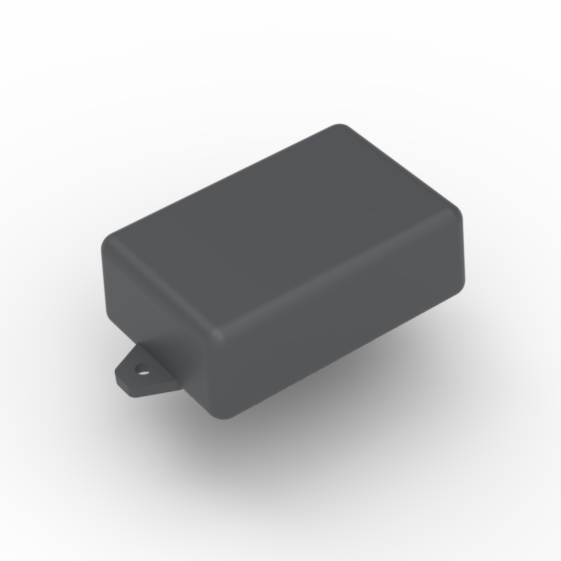

SR01-E.9	57	38	20	9004	TERLURAN GP-22	50	31	2	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 50 MAX PCB W (mm): 31 Screws: 2 Battery: - Accessories: Drawings: PDF DWG
SR02.7 NEW	71,5	38,3	22,9	9002	TERLURAN GP-22	64,5	31	2		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 64,5 MAX PCB W (mm): 31 Screws: 2 Battery: Accessories: Drawings: PDF DWG
SR02.9 NEW	71,5	38,3	22,9	9004	TERLURAN GP-22	64,5	31	2		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 64,5 MAX PCB W (mm): 31 Screws: 2 Battery: Accessories: Drawings: PDF DWG
SR02-E.7 NEW	71,5	38,3	22,9	9002	TERLURAN GP-22	64,5	31	2		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 64,5 MAX PCB W (mm): 31 Screws: 2 Battery: Accessories: Drawings: PDF DWG
SR02-E.9 NEW	71,5	38,3	22,9	9004	TERLURAN GP-22	64,5	31	2		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 64,5 MAX PCB W (mm): 31 Screws: 2 Battery: Accessories: Drawings: PDF DWG
SR03.7 NEW	71,5	38,3	40,9	9002	TERLURAN GP-22	64,5	31	2		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 64,5 MAX PCB W (mm): 31 Screws: 2 Battery: Accessories: Drawings: PDF DWG
SR03.9 NEW	71,5	38,3	40,9	9004	TERLURAN GP-22	64,5	31	2		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 64,5 MAX PCB W (mm): 31 Screws: 2 Battery: Accessories: Drawings: PDF DWG
SR03-E.7 NEW	71,5	38,3	40,9	9002	TERLURAN GP-22	64,5	31	2		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 64,5 MAX PCB W (mm): 31 Screws: 2 Battery: Accessories: Drawings: PDF DWG
SR03-E.9 NEW	71,5	38,3	40,9	9004	TERLURAN GP-22	64,5	31	2		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 64,5 MAX PCB W (mm): 31 Screws: 2 Battery: Accessories: Drawings: PDF DWG
SR04.7 NEW	88,9	50,8	25,5	9002	TERLURAN GP-22	82	44	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 82 MAX PCB W (mm): 44 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR04.9 NEW	88,9	50,8	25,5	9004	TERLURAN GP-22	82	44	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 82 MAX PCB W (mm): 44 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR04-E.7 NEW	88,9	50,8	25,5	9002	TERLURAN GP-22	82	44	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 82 MAX PCB W (mm): 44 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR04-E.9 NEW	88,9	50,8	25,5	9004	TERLURAN GP-22	82	44	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 82 MAX PCB W (mm): 44 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR06.7 NEW	153	52	28	9002	TERLURAN GP-22	144	43	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 144 MAX PCB W (mm): 43 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR06.9 NEW	153	52	28	9004	TERLURAN GP-22	144	43	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 144 MAX PCB W (mm): 43 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR120.7	111,1	111,1	31	9002	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR120.9	111,1	111,1	31	9004	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR120-E.7	111,1	111,1	31	9002	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR120-E.9	111,1	111,1	31	9004	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR170.7	111,1	111,1	43,4	9002	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR170.9	111,1	111,1	43,4	9004	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR170-E.7	111,1	111,1	43,4	9002	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR170-E.9	111,1	111,1	43,4	9004	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR21.7 NEW	76,2	65,5	16,6	9002	TERLURAN GP-22	70,6	57.9	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 70,6 MAX PCB W (mm): 57.9 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR21.9 NEW	76,2	65,5	16,6	9004	TERLURAN GP-22	70,6	57.9	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 70,6 MAX PCB W (mm): 57.9 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR21-E.7 NEW	76,2	63,5	16,6	9002	TERLURAN GP-22	70,6	57.9	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 70,6 MAX PCB W (mm): 57.9 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR21-E.9 NEW	76,2	63,5	16,6	9004	TERLURAN GP-22	70,6	57.9	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 70,6 MAX PCB W (mm): 57.9 Screws: 4 Battery: Accessories: Drawings: PDF DWG

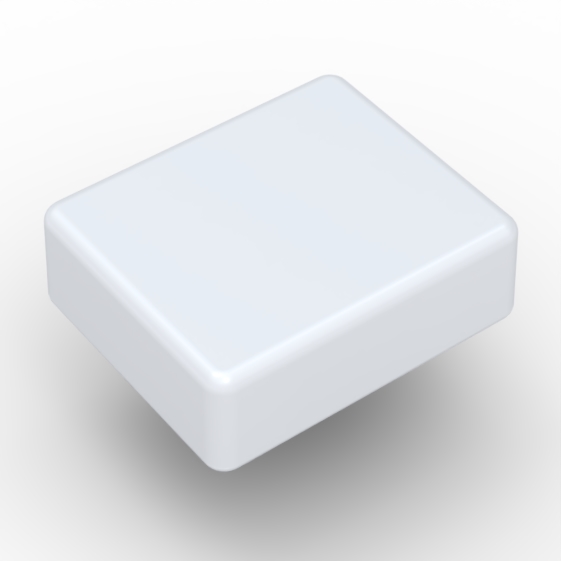

SR22.7	76	63,5	26	9002	TERLURAN GP-22	67,6	55,1	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

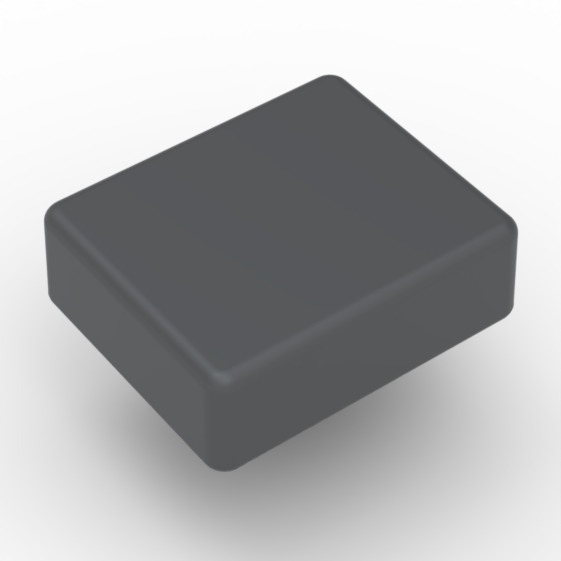

SR22.9	76	63,5	26	9004	TERLURAN GP-22	67,6	55,1	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

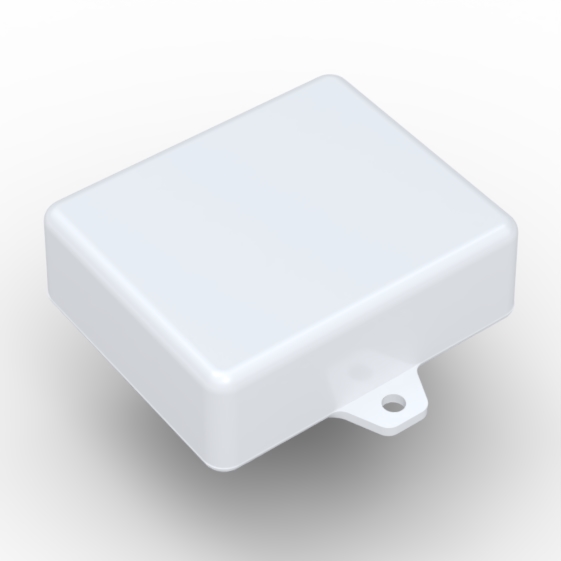

SR22-E.7	76	63,5	26	9002	TERLURAN GP-22	67,6	55,1	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

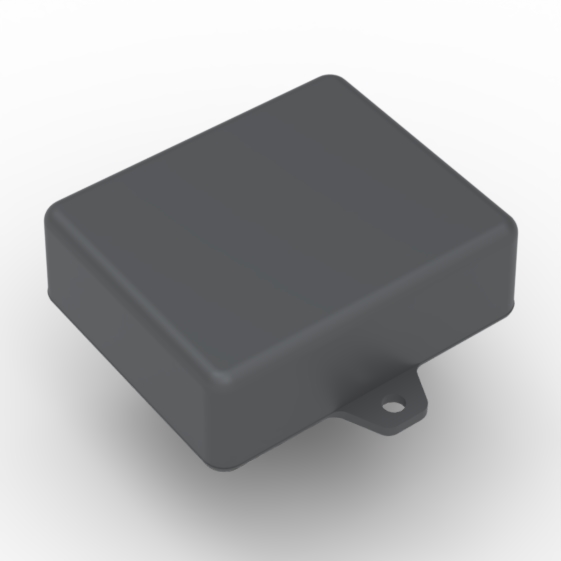

SR22-E.9	76	63,5	26	9004	TERLURAN GP-22	67,6	55,1	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

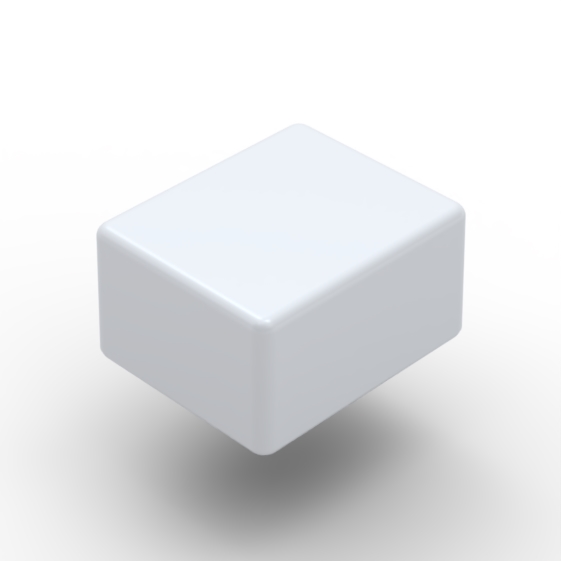

SR23.7	76	63,5	41	9002	TERLURAN GP-22	67,6	55,1	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

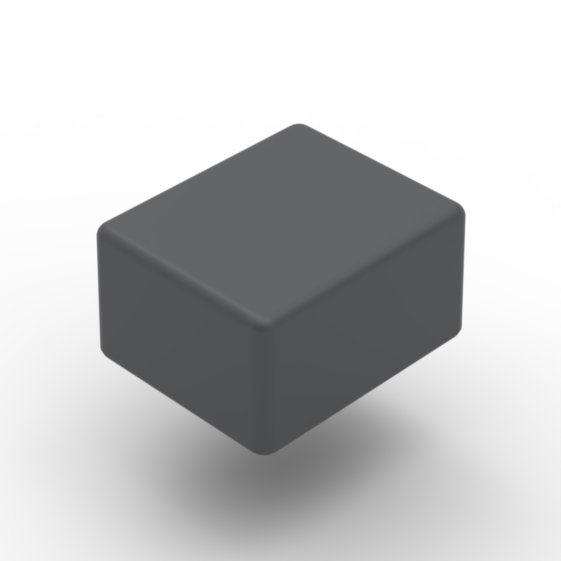

SR23.9	76	63,5	41	9004	TERLURAN GP-22	67,6	55,1	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

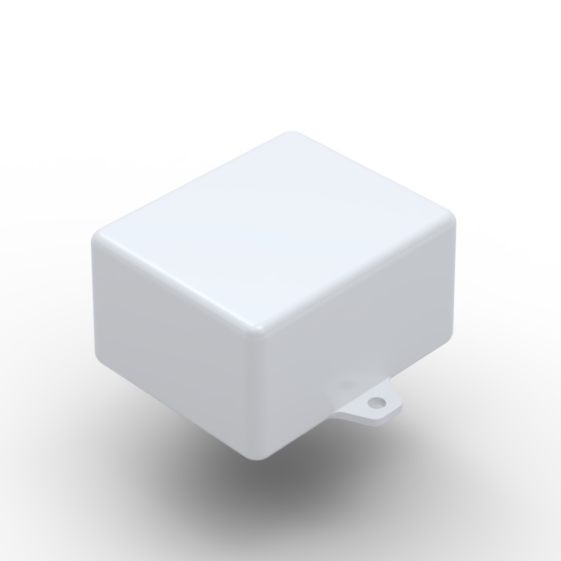

SR23-E.7	76	63,5	41	9002	TERLURAN GP-22	67,6	55,1	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

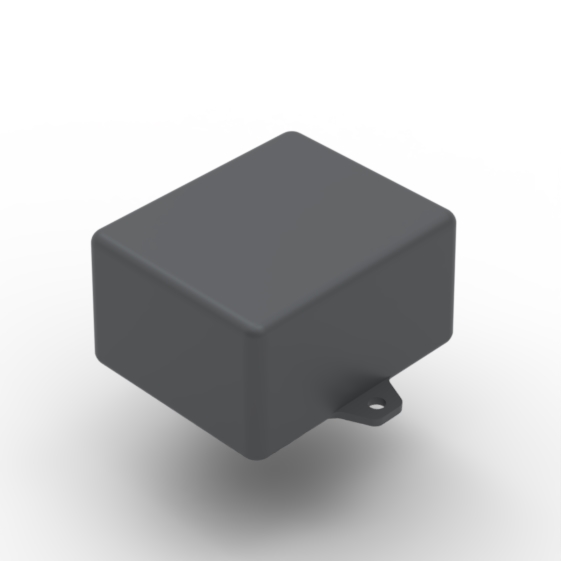

SR23-E.9	76	63,5	41	9004	TERLURAN GP-22	67,6	55,1	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR24-DB.7 NEW	76	63,5	38,7	9002	TERLURAN GP-22	67,6	55,1	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR24-DB.9 NEW	76	63,5	38,7	9004	TERLURAN GP-22	67,6	55,1	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR25-DB.7 NEW	76	63,5	48	9002	TERLURAN GP-22	67,6	55,1	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR25-DB.9 NEW	76	63,5	48	9004	TERLURAN GP-22	67,6	55,1	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR26-DB.7 NEW	76	63,5	63,4	9002	TERLURAN GP-22	67,6	55,1	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR26-DB.9 NEW	76	63,5	63,4	9004	TERLURAN GP-22	67,6	55,1	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 67,6 MAX PCB W (mm): 55,1 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR31.7 NEW	128	64	16,5	9002	TERLURAN GP-22	120,3	56,4	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR31.9 NEW	128	64	16,5	9004	TERLURAN GP-22	120,3	56,4	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR31-E.7 NEW	128	64	16,5	9002	TERLURAN GP-22	120,3	56,4	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR31-E.9 NEW	128	64	16,5	9004	TERLURAN GP-22	120,3	56,4	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: Accessories: Drawings: PDF DWG

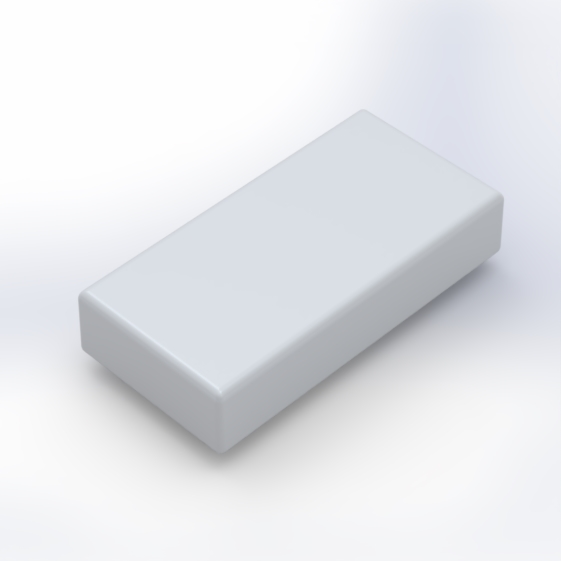

SR33.7	128	64	26	9002	TERLURAN GP-22	120,3	56,4	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

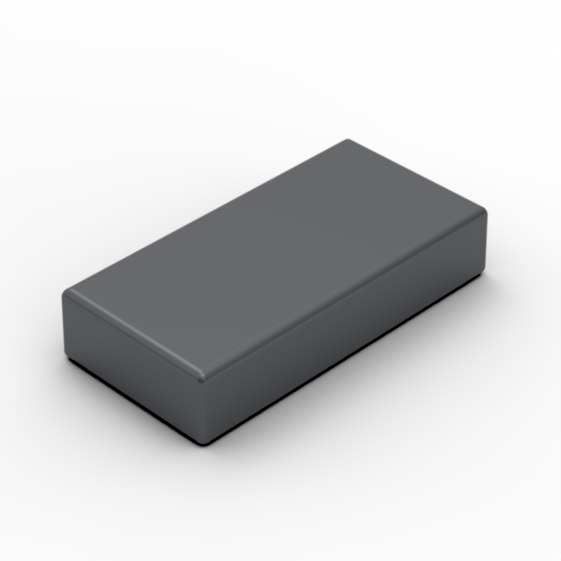

SR33.9	128	64	26	9004	TERLURAN GP-22	120,3	56,4	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

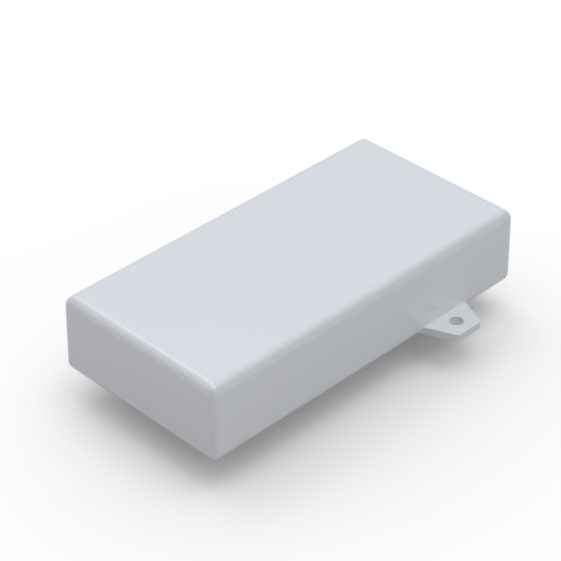

SR33-E.7	128	64	26	9002	TERLURAN GP-22	120,3	56,4	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

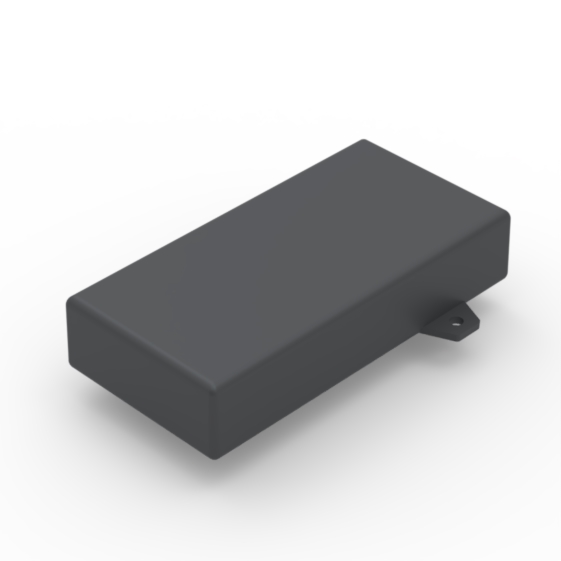

SR33-E.9	128	64	26	9004	TERLURAN GP-22	120,3	56,4	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

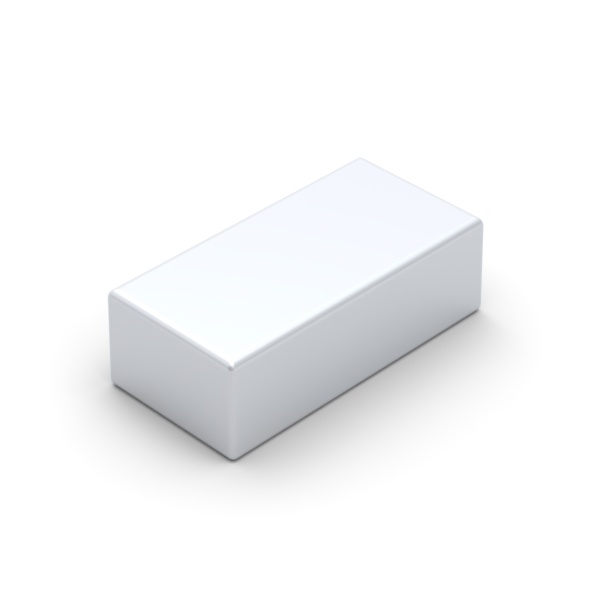

SR34.7	128	64	41	9002	TERLURAN GP-22	120,3	56,4	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

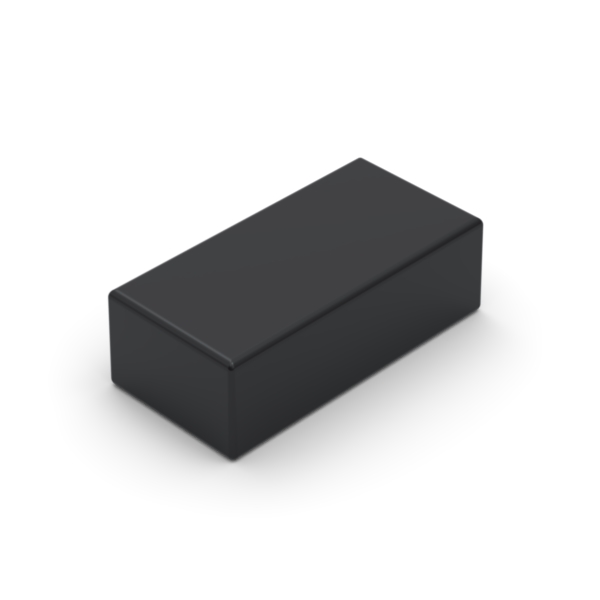

SR34.9	128	64	41	9004	TERLURAN GP-22	120,3	56,4	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

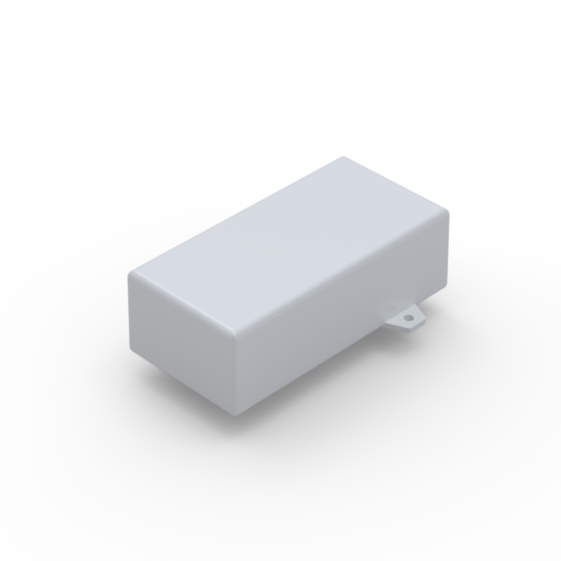

SR34-E.7	128	64	41	9002	TERLURAN GP-22	120,3	56,4	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

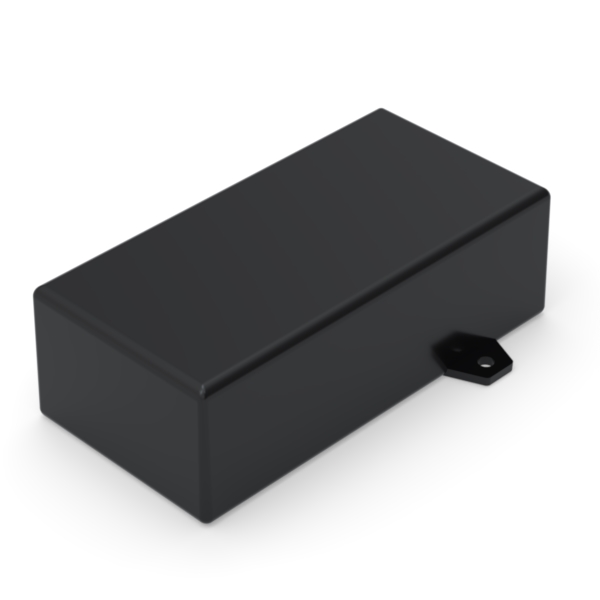

SR34-E.9	128	64	41	9004	TERLURAN GP-22	120,3	56,4	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR35-DB.7 NEW	128	64	38,7	9002	TERLURAN GP-22	120,3	56,4	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR35-DB.9 NEW	128	64	38,7	9004	TERLURAN GP-22	120,3	56,4	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR36-DB.7 NEW	128	63,5	48	9002	TERLURAN GP-22	120,3	56,4	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR36-DB.9 NEW	128	63,5	48	9004	TERLURAN GP-22	120,3	56,4	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR37-DB.7 NEW	128	63,5	63	9002	TERLURAN GP-22	120,3	56,4	4		View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR37-DB.9 NEW	128	63,5	63	9004	TERLURAN GP-22	120,3	56,4	4		View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 120,3 MAX PCB W (mm): 56,4 Screws: 4 Battery: Accessories: Drawings: PDF DWG
SR75.7	111,1	111,1	18,2	9002	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR75.9	111,1	111,1	18,2	9004	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR75-E.7	111,1	111,1	18,2	9002	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9002 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG
SR75-E.9	111,1	111,1	18,2	9004	TERLURAN GP-22	103,5	103,5	4	-	View Color (Ral): 9004 Material: TERLURAN GP-22 MAX PCB L (mm): 103,5 MAX PCB W (mm): 103,5 Screws: 4 Battery: - Accessories: Drawings: PDF DWG

12 product families, 152 series. You can't find what you're looking for? Contact us
