Description
ABS enclosure with rounded corners and an 1 mm aluminium panel. The base walls have integral PCB guides in a high density configuration. Glossy surfaces finish. Closing by four screws.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

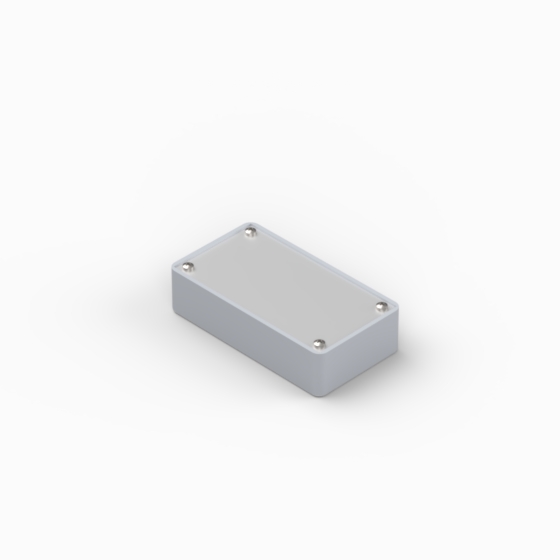

COFFER-A/5.5 | 100 | 55 | 25 |
9018 |
AG-ATY | 95 | 19 | 4 | - |
PDF DWG |
||
|

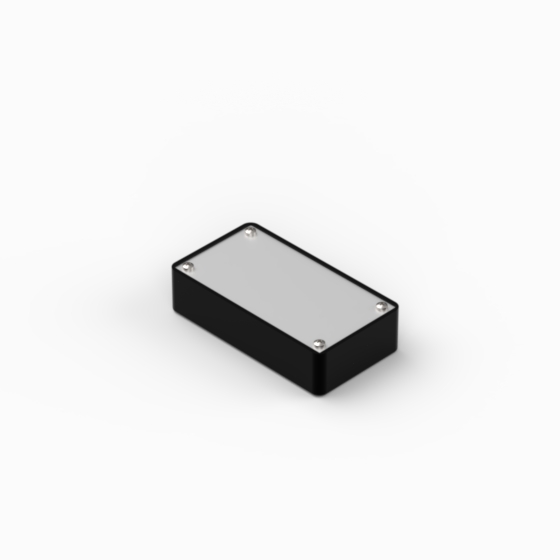

COFFER-A/5.9 | 100 | 55 | 25 |
9004 |
P2H-AT | 95 | 19 | 4 | - |
PDF DWG |
||
|

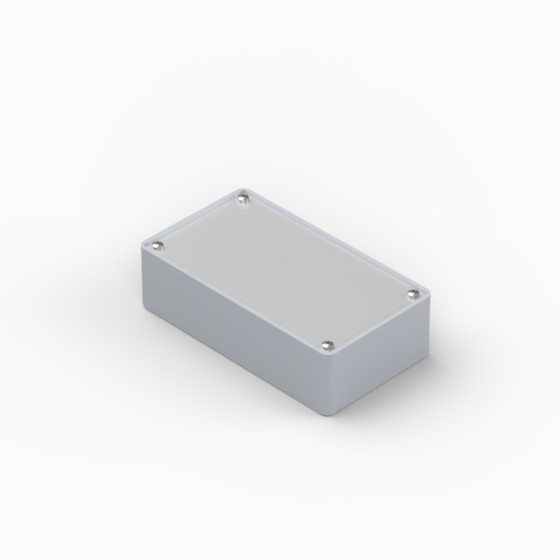

COFFER-A/6.5 | 125 | 70 | 35 |
9018 |
AG-ATY | 120 | 29 | 4 | - |
PDF DWG |
||
|

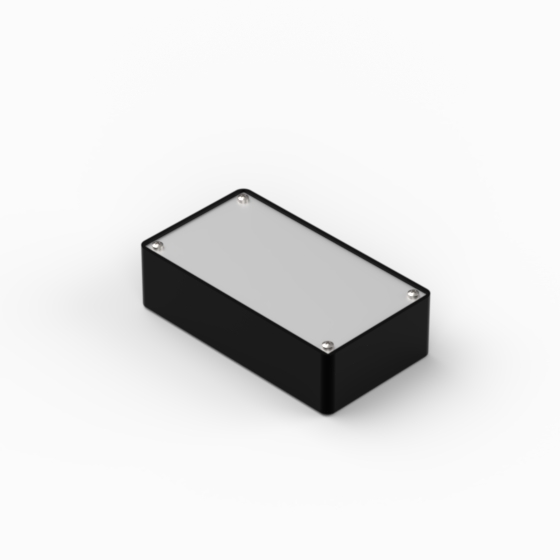

COFFER-A/6.9 | 125 | 70 | 35 |
9004 |
P2H-AT | 120 | 29 | 4 | - |
PDF DWG |
||
|

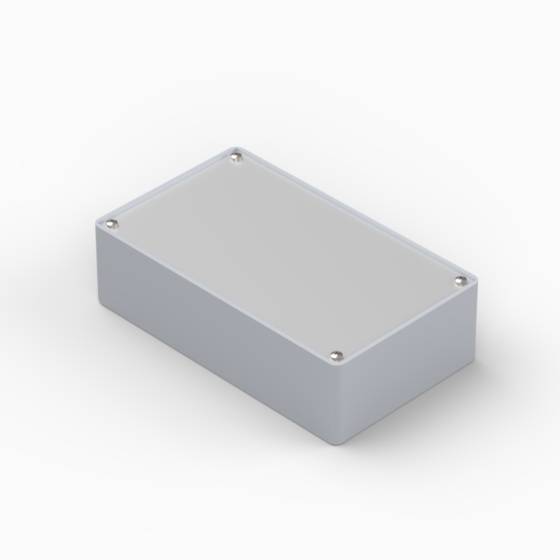

COFFER-A/7.5 | 160 | 95 | 45 |
9018 |
AG-ATY | 155 | 39 | 4 | - |
PDF DWG |
||
|

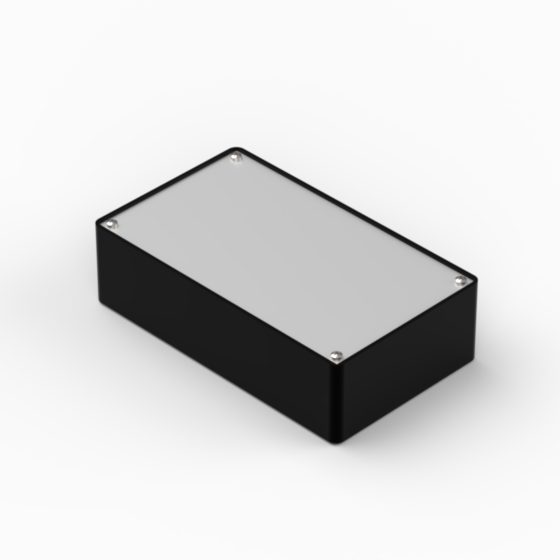

COFFER-A/7.9 | 160 | 95 | 45 |
9004 |
P2H-AT | 155 | 39 | 4 | - |
PDF DWG |
||
|

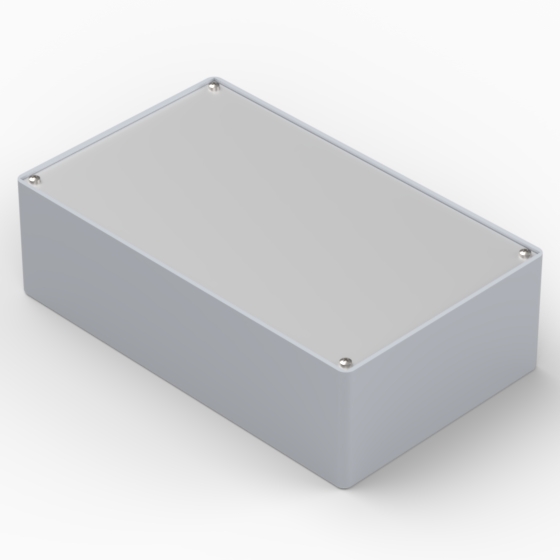

COFFER-A/8.5 | 215 | 130 | 64,5 |
9018 |
AG-ATY | 209,5 | 58 | 4 | - |
PDF DWG |
||
|

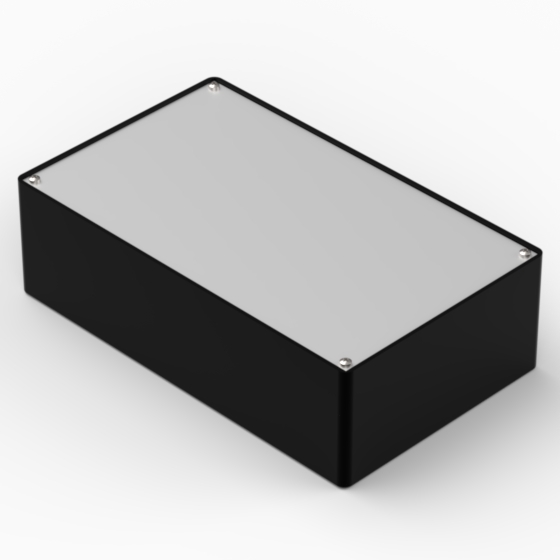

COFFER-A/8.9 | 215 | 130 | 64,5 |
9004 |
P2H-AT | 209,5 | 58 | 4 | - |
PDF DWG |
