OVO-2

Family Pocket - Electronic enclosures - Plastic

OVO-2

Description

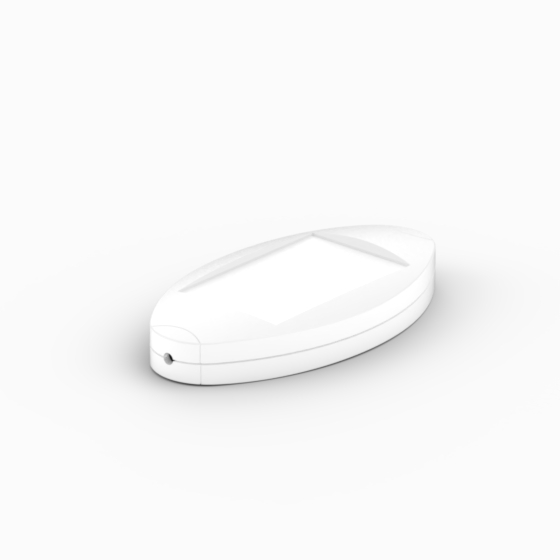

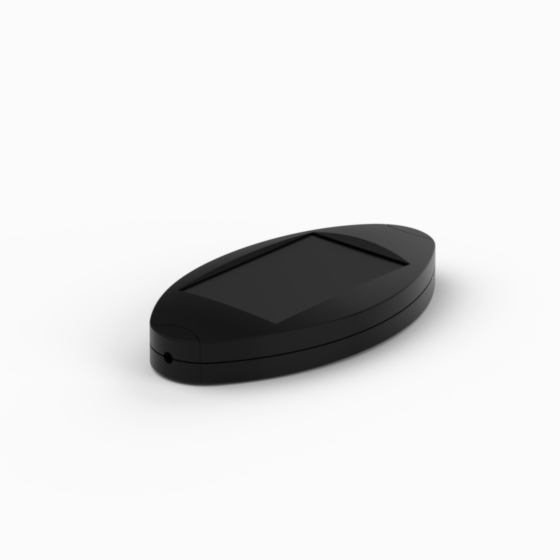

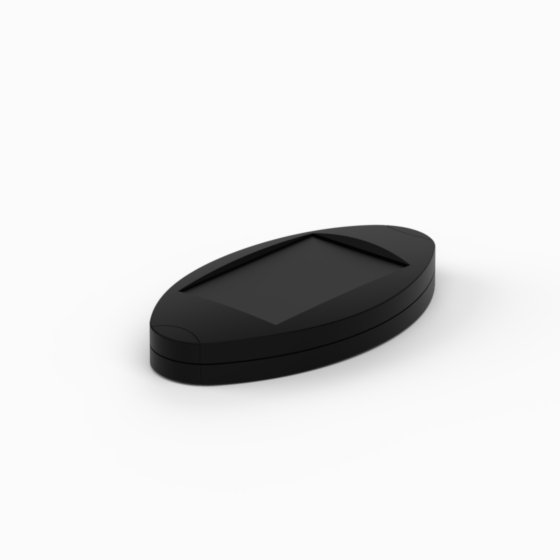

Ergonomic designed ABS enclosures with a recessed operating area for membrane keyboard. Matt surface finish. Space for a 12V battery or small 3V round cells. The model “OVO-2IR” has a front opening for a LED. Closing by two screws.

Details

OVO-2 - dettaglio 1

OVO-2 - dettaglio 2

OVO-2 - dettaglio 3

Products

	Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Drawings	Other
	OVO-2.7	95,5	51	17,3	9002	L320	-	-	2	1x12V / 1x3V	M50 M51 M52 MT5		View Color (Ral): 9002 Material: L320 MAX PCB L (mm): - MAX PCB W (mm): - Screws: 2 Battery: 1x12V / 1x3V Accessories: M50 M51 M52 MT5 Drawings: PDF DWG
	OVO-2.9	95,5	51	17,3	9004	P2H-AT	-	-	2	1x12V / 1x3V	M50 M51 M52 MT5		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): - MAX PCB W (mm): - Screws: 2 Battery: 1x12V / 1x3V Accessories: M50 M51 M52 MT5 Drawings: PDF DWG
	OVO-2IR.7	95,5	51	17,3	9002	L320	-	-	2	1x12V / 1x3V	M50 M51 M52 MT5		View Color (Ral): 9002 Material: L320 MAX PCB L (mm): - MAX PCB W (mm): - Screws: 2 Battery: 1x12V / 1x3V Accessories: M50 M51 M52 MT5 Drawings: PDF DWG
	OVO-2IR.9	95,5	51	17,3	9004	P2H-AT	-	-	2	1x12V / 1x3V	M50 M51 M52 MT5		View Color (Ral): 9004 Material: P2H-AT MAX PCB L (mm): - MAX PCB W (mm): - Screws: 2 Battery: 1x12V / 1x3V Accessories: M50 M51 M52 MT5 Drawings: PDF DWG

13 product families, 155 series. You can't find what you're looking for? Contact us
